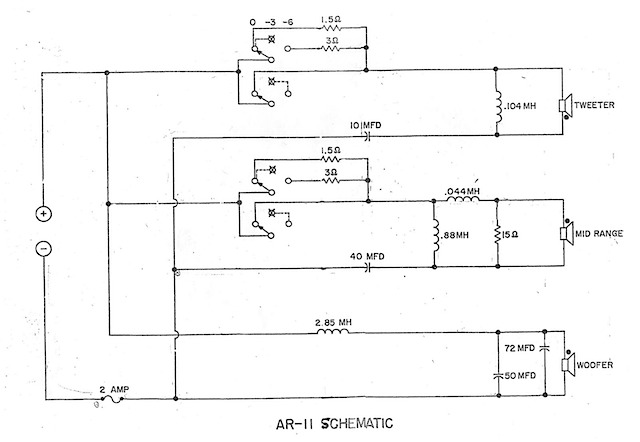

AR-11 Schematic

AR_11_Schematic_ARHPG_From_Klaus

Per Tom Tyson: "This is the initial schematic for the AR-11.  I think all AR-11’s are the same, electrically, so it should apply.  Note the 2-amp (FNM-2) fuse designation: I am not sure that any of these speakers had the fuse holder as a part of the circuit."
